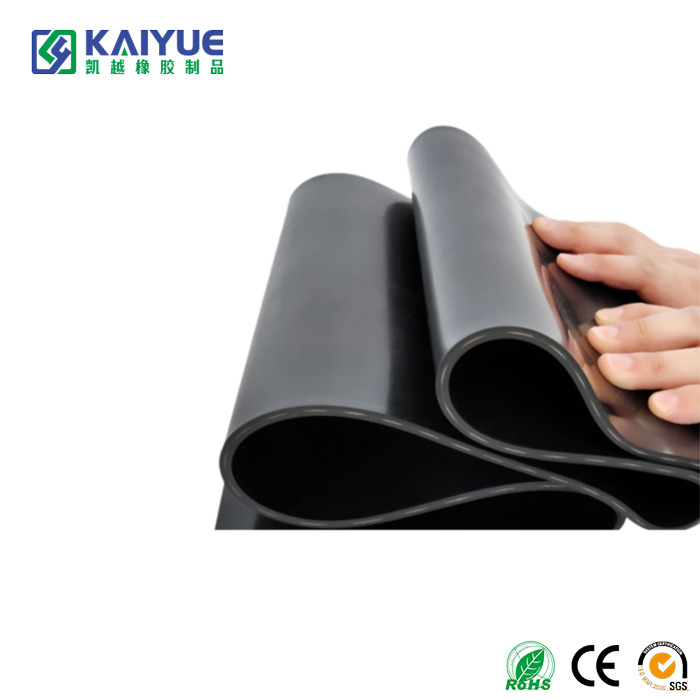

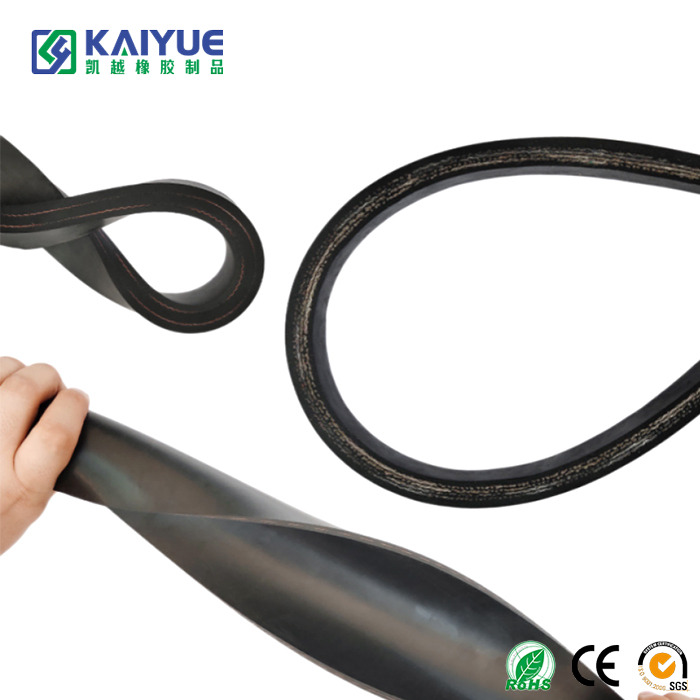

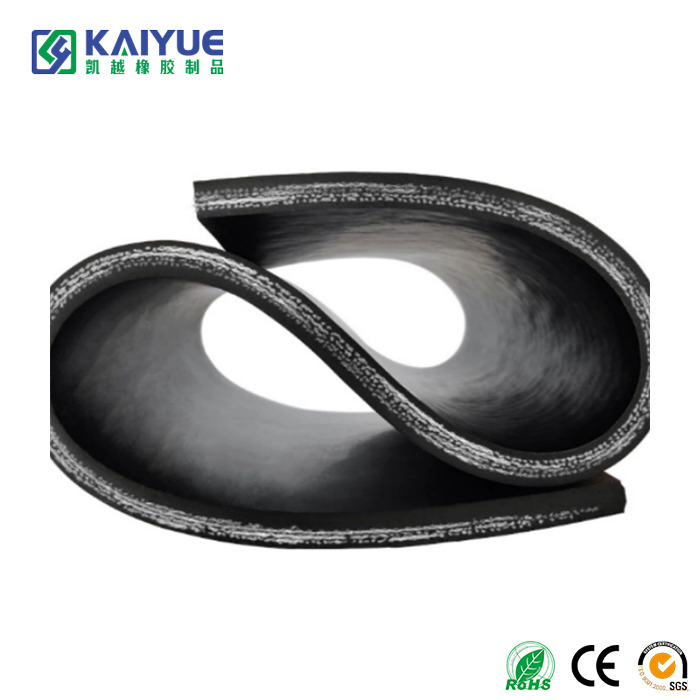

When engineering critical fluid transfer systems or heavy-duty mechanical foundations, standard elastomers often fail under extreme compression. Our fabric insertion rubber sheet is engineered to solve these exact structural challenges. By embedding a resilient textile matrix within the core, we deliver a sealing solution that physically resists lateral expansion, offering exceptional reliability for demanding industrial environments.

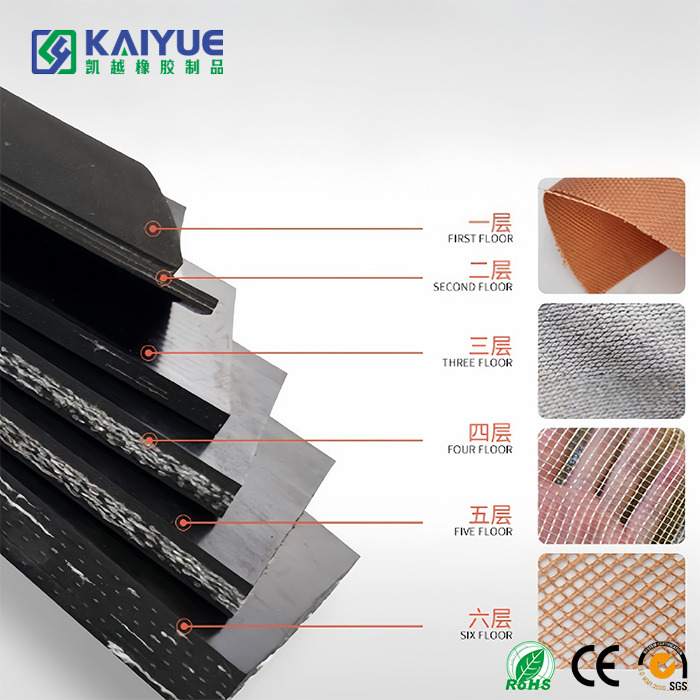

Unlike unreinforced alternatives that stretch and distort under heavy flange pressure, our embedded high-strength fiber layers act as a structural backbone. This internal textile mesh significantly elevates the tensile threshold and tear resistance. When handled, the material feels exceptionally dense and firm, maintaining strict dimensional stability even when subjected to intense, repetitive mechanical stress, thereby reducing maintenance downtime.
Formulated from a premium NBR matrix, this reinforced sheet repels aggressive industrial fluids. It actively resists swelling, softening, or cracking when continuously exposed to lubricating oils, hydraulic fluids, and diesel. The smooth, non-porous surface finish ensures that chemical agents cannot penetrate the core, guaranteeing a prolonged operational lifespan in the most unforgiving chemical processing facilities.
Despite its formidable internal strength, the outer rubber layers maintain a moderate Shore A hardness. This allows the material to compress audibly and tightly against uneven metal joints or pitted flange faces. It bridges micro-gaps flawlessly, providing a dependable, leak-proof barrier that serves as an essential cushioning component for complex pipeline architectures.
Industrial operations do not stop for extreme weather, and neither does our sealing material. Engineered to perform consistently between -20°C and 100°C, it resists embrittlement in freezing outdoor conditions and prevents structural softening near active heat sources. This inherent weather resistance ensures physical properties remain intact over years of continuous exposure.
Recognizing that no two engineering projects are identical, we provide extensive dimensional tailoring. From specific thickness profiles to exact width and length requirements, every roll is manufactured under strict tolerance controls. This precision ensures that whether you are lining an entire logistics floor or stamping thousands of micro-gaskets, the material consistency remains absolute.
Evaluating the correct material specifications is the most critical step in industrial procurement. The technical parameters detailed below represent the exact physical, thermal, and chemical capabilities of our reinforced elastomeric sheets. Manufactured to precise tolerances, these materials undergo continuous laboratory testing to verify their structural integrity before they ever leave our facility. By adhering strictly to these data points, engineers can confidently integrate our products into complex fluid dynamics systems, heavy machinery foundations, and harsh outdoor environments without fear of premature material degradation. Please review the specific metrics regarding tensile strength, elongation, and thermal resistance to ensure absolute compatibility with your project requirements.
| Item | Specification |
| Product Name | Fabric Insertion Rubber Sheet |
| Material | NBR / EPDM / FKM |
| Reinforcement | Fiber fabric insertion |
| Hardness (Shore A) | 60 - 80 Shore A |
| Tensile Strength | ≥ 8.0 MPa |
| Elongation at Break | ≥ 150% |
| Oil Resistance | Excellent (No swelling, No deformation) |
| Temperature Range | -20° C ~ +100° C |
| Thickness | 1mm - 50mm |
| Width | 500mm - 1500mm |
| Color | Black, custom colors available |
| Application | Gaskets, seals, machinery, flooring, pipelines |
Our engineered materials are deployed across multiple heavy-industry sectors, resolving specific operational challenges where standard materials fall short.
Fabric reinforced sheets are the primary choice for custom gaskets, heavy flange connections, and complex valve systems. They deliver superior pressure retention in medium-pressure fluid networks, ensuring that oil, water, and chemical pipelines remain securely sealed without blowout risks.
When installed beneath stamping presses, CNC equipment, and automotive manufacturing lines, these pads absorb severe kinetic energy. The internal fabric prevents the pad from flattening out over time, effectively dampening mechanical noise and protecting concrete foundations from structural fatigue.
In the transport sector, protecting assets is paramount. These sheets serve as rugged linings for commercial truck beds, maritime ship decks, and high-traffic logistics floors. They provide a high-friction, anti-slip surface that absorbs the impact of heavy cargo drops, extending the lifespan of the underlying metal structures.
Civil infrastructure demands materials that endure decades of exposure. Our reinforced elastomers are utilized in bridge load-bearing supports, underground tunnel sealing rings, and concrete expansion joints. Their resistance to UV aging and atmospheric ozone ensures they remain flexible through endless seasonal shifts.
Beyond mechanical applications, these sheets create safe, load-bearing environments for personnel. Applied to heavy-duty workbenches, warehouse aisles, and elevated platforms, they offer exceptional wear resistance while insulating workers from cold, unforgiving industrial flooring.
Proper installation is critical to maximizing the operational lifespan and sealing efficacy of reinforced elastomers. Follow this comprehensive protocol to ensure optimal performance.
Before any material is applied, thoroughly degrease and clean the mating surfaces or foundation area. Remove all rust, old adhesive residues, and particulate matter. The metal or concrete substrate must be completely dry to prevent moisture entrapment, which can compromise the friction grip.
Measure the target area meticulously. When fabricating custom gaskets, utilize industrial shears, die-cutting presses, or waterjet technology to ensure clean edges. It is vital to account for a slight compression spread; however, the internal fabric will prevent excessive lateral deformation during this phase.
Place the tailored rubber sheet evenly over the designated sealing flange or cushioning zone. For vertical or complex horizontal installations, an industrial-grade contact adhesive may be applied to temporarily hold the sheet. Ensure the material rests flat without any internal tension or folding of the embedded fabric.
If used as a flange gasket, apply bolt torque in a standardized star or cross pattern. Tighten incrementally to ensure the compressive load is distributed evenly across the entire surface area. You will feel the material seat firmly, creating an impenetrable barrier without extruding outward.
After the initial thermal or operational cycle, re-check bolt torque as minor settling may occur. Establish a routine inspection schedule to monitor for signs of mechanical abrasion or chemical attack. Thanks to the reinforced core, replacement intervals are significantly extended compared to standard materials.
Frequently Asked Questions regarding technical specifications, procurement, and material performance.
We manufacture standard profile thicknesses ranging from 1mm up to 50mm. Thinner profiles are ideal for precision valve seals, while thicker variants serve as heavy-duty anti-vibration mounts. We also accommodate highly specific custom dimensions to match your proprietary engineering schematics.
The standard fabric-inserted sheet operates flawlessly within a thermal bandwidth of -20°C to 100°C. For specialized industrial environments involving extreme heat or cryogenic conditions, we can adjust the polymer compounding to meet those exact thermal demands.
Absolutely. The NBR base formulation is specifically engineered to repel hydrocarbons. It demonstrates exceptional resistance to synthetic lubricating oils, hydraulic fluids, and diesel. Furthermore, its anti-aging properties prevent atmospheric ozone from causing surface micro-cracks over time.
Yes, our facility is equipped with precision CNC and die-cutting technology. We can process materials directly from your CAD drawings. To ensure complete confidence before you commit to a large-scale project, we readily supply physical samples for your internal laboratory testing.
For standard inventory profiles, dispatch occurs within 3 to 7 days. For highly customized dimensions or specialized polymer blends, production requires 7 to 15 days. Our robust supply chain ensures that even urgent, high-volume project deadlines are met with absolute reliability.
Securing a dependable supply chain requires partnering with a manufacturer that prioritizes consistency, scale, and rigorous compliance. Our production infrastructure is built to serve the most demanding global enterprises, ensuring every procurement cycle is seamless and secure.
Operating under strict ISO9001, ISO45001, and ISO14000 certifications, our facilities reflect decades of specialized manufacturing expertise. We hold multiple industry patents, ensuring our production methodologies continuously meet and exceed stringent global industrial criteria.
Risk mitigation is paramount for large-scale projects. We enforce a rigorous QA/QC inspection protocol, culminating in a 100% final product evaluation before dispatch. Furthermore, our complete raw material batch traceability guarantees absolute stability across massive procurement volumes.
We offer far more than basic dimensional cutting. Our engineering team provides full-spectrum OEM and ODM services, translating your proprietary blueprints and physical samples into precise, non-standard sealing solutions tailored to your unique mechanical architecture.
Backed by immense monthly production capacity, our supply chain remains resilient against market fluctuations. We provide definitive lead-time commitments, ensuring that your critical engineering projects stay on schedule, regardless of seasonal demand peaks.
We actively minimize cross-border procurement risks by offering robust financial security protocols and accommodating independent pre-shipment inspections. Should any technical discrepancies arise, our dedicated after-sales team resolves issues swiftly to protect your operational continuity.
Our reinforced sealing materials are not just theoretically sound; they are field-proven. We maintain long-term supply partnerships with major state-owned enterprises and Fortune 500 multinationals, delivering solutions that survive the harshest validated industrial environments worldwide.
