1. Fully Complies with SAE J517 Industry Standard

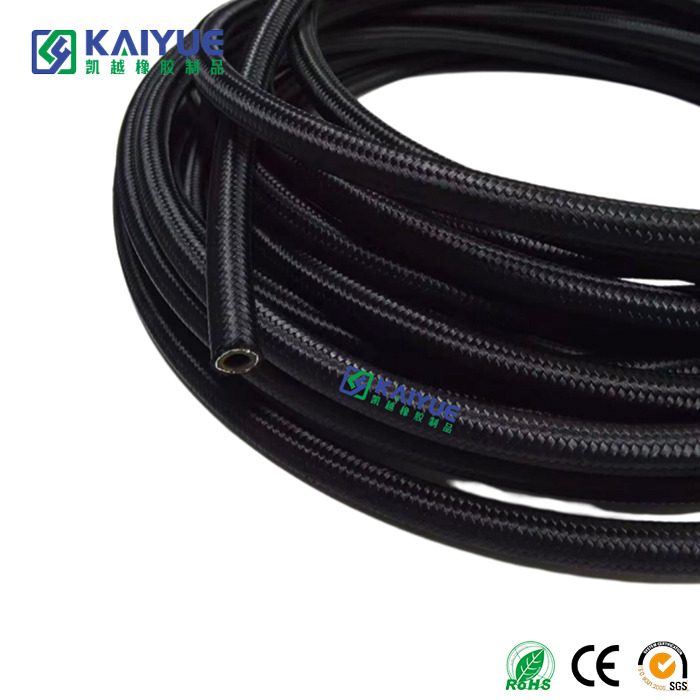

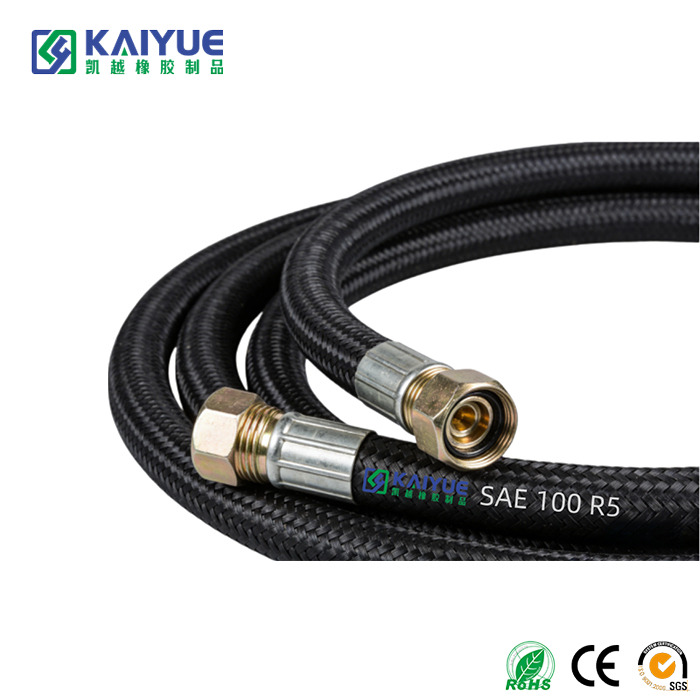

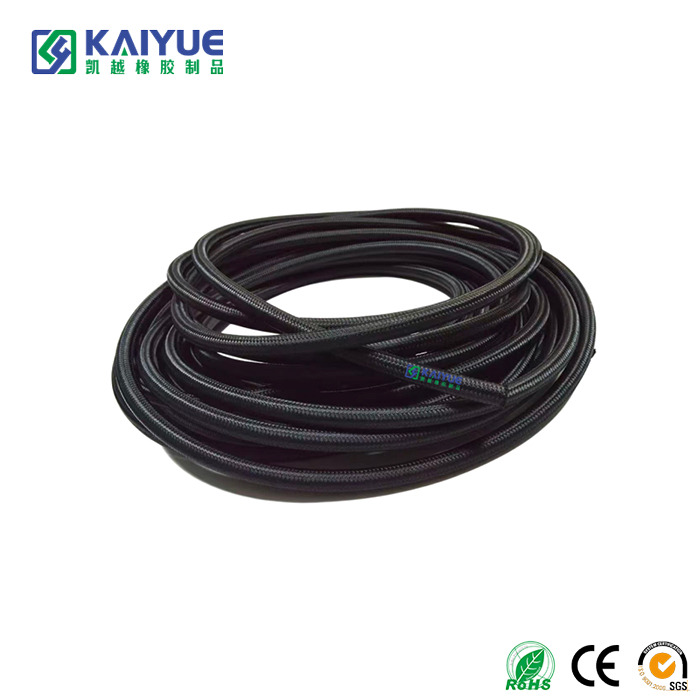

Our SAE 100 R5 hydraulic hose is strictly produced per SAE J517 specifications, with a single high-tensile steel wire braid reinforcement and a rugged textile braided cover. It delivers a working pressure range of 10.3–20.7 MPa (1500–3000 psi), making this medium pressure hydraulic hose ideal for medium-pressure hydraulic systems.
2. Superior Oil & Wide Temperature Resistance
Equipped with a premium NBR inner tube, this steel wire braided hydraulic hose offers excellent resistance to petroleum-based hydraulic oil, lubricants, compressed air and water-glycol fluids. It operates reliably from -40°C to +100°C, retaining flexibility in cold environments and resisting aging in high heat.
3. Abrasion-Resistant Textile Cover for Mobile Use
The outer textile braided cover of our SAE 100 R5 hose provides exceptional abrasion, ozone and UV resistance, perfect for long-term outdoor operation. With a small minimum bending radius and lightweight design, this textile covered hydraulic hose is easy to install in compact vehicle spaces.
4. High Safety Factor & Excellent Pulse Resistance
Our SAE 100 R5 hydraulic brake hose features a 4:1 safety factor, with burst pressure exceeding 4 times the rated working pressure. It delivers outstanding pulse fatigue resistance, making it ideal for frequently cycled systems like automotive brake lines and power steering circuits.
5. Customized Solutions & Factory Direct Supply
Jingxian Kaiyue Rubber offers fully customized SAE 100 R5 hydraulic hose, including custom inner diameters, lengths and matched end fittings. With strict quality control, mass production capacity and global export experience, we provide cost-effective custom hydraulic hose solutions and on-time delivery.
Item | Specification |
Standard | SAE 100 R5 (SAE J517) |
Inner Tube | Oil-resistant NBR (Nitrile Butadiene Rubber) synthetic rubber |
Reinforcement | Single high-tensile steel wire braid |
Outer Cover | Abrasion-resistant textile braided cover (weather & ozone resistant) |
Working Temperature Range | -40° C ~ +100° C (-40° F ~ +212° F) |
Safety Factor | 4:1 (Burst pressure ≥ 4 × rated working pressure) |
Applicable Media | Petroleum-based hydraulic oil, lubricating oil, compressed air, water-glycol fluids |
Core Application | Medium-pressure hydraulic & pneumatic systems, automotive brake lines, power steering |
1. Automotive Brake & Power Steering Systems
Our SAE 100 R5 hydraulic hose is the top choice for commercial vehicle brake lines and power steering circuits. With a single high-tensile steel wire braid and abrasion-resistant textile cover, it withstands medium pressure and frequent pulse loads, ensuring reliable performance under vehicle vibration and harsh outdoor conditions.
2. Agricultural Machinery Hydraulic Lines
This textile covered hydraulic hose is widely applied in tractors, harvesters and farm equipment. Its excellent weather, ozone and abrasion resistance adapts to long-term outdoor field operation, while stable medium-pressure performance supports reliable fluid transmission for agricultural hydraulic systems.
3. Construction & Mobile Machinery Hydraulic Circuits
Our SAE 100 R5 medium pressure hydraulic hose fits small construction machinery like compact loaders, rollers and aerial work platforms. Its flexible structure and small bending radius enable easy installation in compact spaces, with outstanding pulse resistance for heavy-duty mobile hydraulic systems.
4. Industrial Equipment & Machine Tool Hydraulic Systems
Ideal for industrial machine tools, injection molding machines and hydraulic power units, this steel wire braided hydraulic hose delivers stable medium-pressure fluid transmission. Its premium NBR inner tube ensures excellent oil resistance, supporting long-term reliable operation in automated industrial production lines.
5. Pneumatic & Lubrication Lines for Mobile Equipment
This SAE 100 R5 hose is also suitable for compressed air lines and lubrication circuits in trucks, buses and special vehicles. It withstands medium pressure and harsh outdoor environments, providing safe and stable air and lubricant transmission for mobile equipment systems.
Before installation, check the SAE 100 R5 hydraulic hose for damage and confirm its size and pressure rating match your system. Install without twisting or over-bending, keep it away from sharp edges and high-temperature sources. Tighten fittings properly to avoid leakage. Regularly inspect for wear, cracks or aging during use to ensure stable and safe operation of your hydraulic system.
1. Q: Is SAE 100 R5 suitable for vehicle brake and power steering systems?
A: Yes. Designed as a medium-pressure hydraulic hose with steel wire braid, it meets SAE J517 and performs well in brake, power steering and pneumatic circuits, resisting pulse and vibration for commercial vehicles.
2. Q: What fluids and temperature range does this hose support?
A: Our SAE 100 R5 hose works with petroleum oil, air and water-glycol, operating stably from -40℃ to 100℃. The NBR tube and textile cover ensure strong oil resistance and long service life.
3. Q: Can you provide custom sizes and matching fittings?
A: Jingxian Kaiyue supports custom lengths, diameters and end fittings (JIC, NPT, etc.) for SAE 100 R5 hydraulic hose. Strict quality control ensures stable quality and on-time delivery for global customers.
4. Q: What is the benefit of the textile braided cover?
A: The textile cover offers excellent abrasion, ozone and UV resistance, ideal for outdoor mobile equipment. It is lightweight and flexible, easy to install in narrow spaces of vehicles and construction machinery.
