Did you know that incorrect pressure specifications are a leading cause of catastrophic fluid line failures? When a line blows out on a busy job site, machinery grinds to an immediate, messy halt. The financial hit of unplanned downtime is massive. More importantly, these sudden ruptures create severe, sometimes lethal, safety hazards for nearby operators. Selecting the appropriate pressure rating is your absolute best defense against these costly disasters.
In this comprehensive guide, we step out of the theoretical classroom and onto the job site. We will break down exactly how these limits are calculated in the real world. You will gain actionable, field-tested insights to help you choose the safest and most efficient options for your fluid power systems.
Working Limit vs. Burst Limit: The maximum working pressure indicates the highest continuous force an assembly can safely handle. Conversely, the burst limit is the critical threshold where the structure experiences catastrophic failure and violently ruptures.
The 4 to 1 Safety Factor: The industry standard dictates a strict four-to-one safety margin for most fluid power applications. This means the burst limit is engineered to be exactly four times the working capacity, providing a vital buffer for unexpected system spikes.
Reinforcement Dictates Strength: The physical integrity of any fluid line relies entirely on its reinforcement layer. Synthetic textile braids are suited for lower stresses, while high-tensile steel wire is absolutely mandatory for medium and extreme environments.
Industry Standards Matter: Ratings are never arbitrary manufacturer claims. They are strictly governed by rigorous international testing frameworks, primarily defined by the Society of Automotive Engineers, known as SAE, and European Norms, or EN.
Application-Specific Selection: Procuring the correct component requires a holistic analysis of the operating environment. Engineers must evaluate continuous force, dynamic surges, ambient temperatures, fluid compatibility, and physical routing constraints before making a final decision.
Pressure ratings in modern heavy machinery are meticulously calculated specifications. They are based on material science, fluid dynamics, and rigorous empirical testing. When a manufacturer assigns a specific rating to a product, it is the direct result of extensive destructive and non-destructive testing protocols designed to ensure absolute operational safety. Understanding the distinct terminology used in these specifications is the crucial first step toward safe equipment operation.
Often referred to as the dynamic working pressure, the maximum working pressure is the absolute most important metric for any system designer or maintenance technician. This metric defines the highest continuous force that the assembly is engineered to withstand during normal, ongoing operations. For a machine to remain safe and efficient, its maximum operating output, including the pressure relief valve settings, must never exceed this baseline. Operating a line continuously at or slightly above this limit causes accelerated material fatigue. This rapidly reduces the lifespan of both the elastomer tube and its structural reinforcement.
In contrast to the working limit, the minimum burst pressure represents the precise point of catastrophic structural failure. Manufacturers determine this metric by subjecting sample batches to extreme hydrostatic forces in a controlled laboratory environment until the material physically tears apart. It is critical to note that this burst limit is never an operational guideline. It is a strict safety ceiling. Under no circumstances should equipment be designed or operated with the intention of nearing this destructive threshold.
Proof pressure serves as a vital quality control metric utilized during the manufacturing process. Typically set at two times the maximum working pressure, this non-destructive test involves pressurizing a newly manufactured assembly and holding it there for a specific duration, usually around 30 to 60 seconds. This procedure ensures there are no microscopic leaks, hidden structural defects, or weaknesses in the crimped fittings before the product is ever shipped to an end-user.
Pressure Metric | Definition | Typical Ratio | Application |
|---|---|---|---|
Maximum Working Pressure | Highest allowable continuous operating pressure. | 1x | System design and component matching. |
Proof Pressure | Factory testing limit to verify structural integrity. | 2x Working Limit | Quality assurance during manufacturing. |
Minimum Burst Pressure | The exact point at which the structure fails. | 4x Working Limit | Safety buffer calculation; never to be reached. |
In hydraulic engineering, the safety factor acts as a fundamental mathematical bridge between theoretical operating conditions and real-world unpredictability. For standard fluid power applications, the globally accepted industry norm is a four-to-one safety factor. To illustrate, if an assembly has a working limit of 3,000 PSI, its tested minimum burst limit will be engineered to withstand 12,000 PSI.
Understanding why this massive buffer is necessary requires analyzing the highly volatile nature of pressurized fluids. Unlike static storage tanks, these systems are incredibly dynamic. Think about a heavy excavator bucket violently slamming into solid bedrock. The moving fluid comes to an abrupt halt. Because oil is virtually incompressible, that kinetic energy transforms instantly into a violent shockwave known as a water hammer. These transient surges happen in mere milliseconds and can easily double or triple the normal operating baseline.
Consequently, this massive safety factor exists specifically to absorb these aggressive, instantaneous spikes without compromising structural integrity. From a frontline maintenance perspective, utilizing components with lower safety margins is highly discouraged. Skimping on this buffer increases the risk of premature metal fatigue, escalating repair costs, and exposing operators to severe liability.
A standard assembly is constructed using three primary components. You have the inner fluid-bearing tube, the protective outer cover, and the reinforcement layer sandwiched tightly between them. While the inner tube handles chemical compatibility and the cover fights off environmental abrasion, the reinforcement layer serves as the structural backbone. The specific material and geometric design of this layer directly dictate the capabilities of the entire product.
For circuits operating under relatively mild stresses, synthetic textile fibers, such as tightly woven polyester, nylon, or rayon, are braided around the inner tube. Textile reinforcement provides exceptional flexibility, making the line incredibly easy to route through cramped machinery compartments. However, because synthetic fibers lack the tensile strength of metal, these are strictly reserved for low-stress applications. When designing systems like fluid return lines or simple transfer circuits, incorporating a properly rated Low Pressure Hydraulic Hose, such as the SAE 100 R3 which utilizes two layers of textile braid, ensures optimal flexibility while maintaining adequate safety margins up to 1,500 PSI, depending on the diameter.

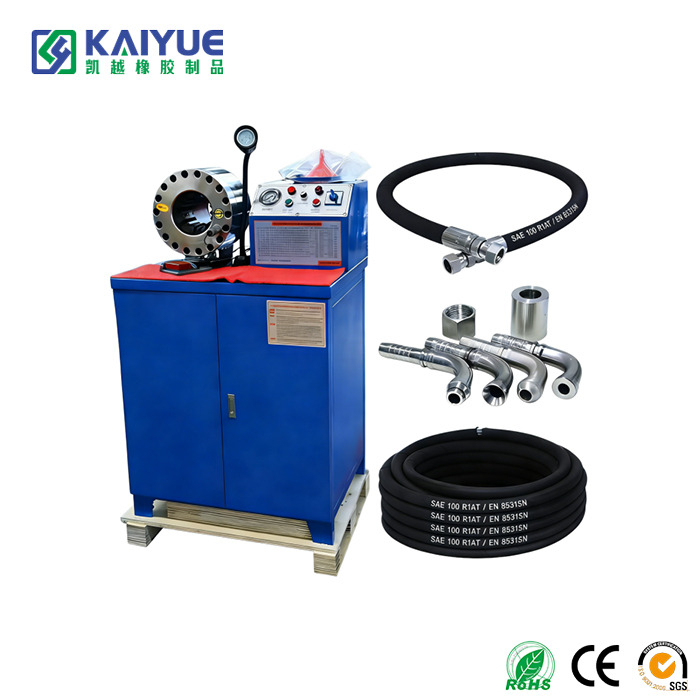

When machinery requires medium to high-power capabilities, textile fibers quickly become insufficient. Instead, manufacturers turn to high-tensile steel wire. In a braided configuration, these steel wires are woven over each other in an overlapping, crisscross pattern. This clever design allows the structure to contain significant internal forces while still retaining a reasonable degree of flexibility. For a vast array of general industrial tasks, utilizing a Single Wire Braided Hydraulic Hose, built to SAE 100 R1 AT or EN 853 1SN standards, provides the perfect balance of structural integrity and maneuverability for standard operating conditions like agricultural tractors and light loaders.
Furthermore, for extreme environments, traditional braided wire is no longer viable. Under immense force, the overlapping wires in a braid can rub against each other, creating internal friction that eventually leads to mechanical failure. To combat this, engineers use a spiral reinforcement technique. In this setup, multiple layers of high-tensile steel wire are wrapped tightly around the tube in alternating, non-intersecting directions. Because the wires do not overlap, friction is eliminated, allowing a High Pressure Hydraulic Rubber Hose with four to six spiral layers to safely contain extreme forces and withstand severe, high-frequency impulses found in mining and heavy construction.
The fluid power industry is currently undergoing a significant transformation regarding how pressure ratings are standardized and monitored. Historically, North American engineers relied heavily on size-dependent standards. In those legacy systems, as the diameter of the line increased, the allowable working pressure naturally decreased due to greater internal surface area stress.
However, modern machine design demands higher power in increasingly compact spaces. As a result, there is a massive global shift toward constant-pressure frameworks, most notably the ISO 18752 standard. This modern approach categorizes products by a uniform pressure rating regardless of the internal diameter, drastically simplifying the procurement and system design processes. In addition, the integration of IoT-enabled pressure sensors directly into fluid circuits is becoming commonplace. These smart diagnostic tools monitor transient spikes in real-time, allowing maintenance teams to shift from reactive repairs to predictive maintenance, effectively replacing weakened lines long before a catastrophic blowout occurs.
Beyond controlled laboratory conditions, real-world operating environments introduce variables that can significantly compromise a component's effective capacity. Engineers and operators must recognize these external and internal factors to prevent premature breakdowns and maintain a safe workspace.
The thermodynamic environment plays a substantial role in the structural integrity of any elastomer. Machinery is frequently exposed to both high ambient heat and elevated fluid temperatures. When operated above its rated thermal limit, rubber compounds begin to soften and degrade. This thermal breakdown reduces the material's tensile strength, diminishing its ability to contain pressurized oil. Over time, excessive heat accelerates the aging process, leading to severe hardening and cracking once the system cools down.
On the opposite end of the spectrum, extreme cold presents a different set of severe challenges. Imagine a skid steer operating in the freezing Alaskan winter. Sub-zero temperatures cause the rubber tube and cover to become dangerously brittle. When a frozen, brittle line is subjected to sudden mechanical flexing or a pressure surge, micro-fissures develop in the inner tube. These tiny cracks allow fluid to penetrate the reinforcement layers, ultimately leading to cover blisters and catastrophic bursts.
As mentioned earlier, fluid power systems are rarely static. The rapid actuation of cylinders and the sudden shifting of heavy loads create violent shockwaves. These transient spikes occur in milliseconds and can easily exceed the normal operating baseline by 50 to 100 percent.
While the built-in safety factor absorbs occasional anomalies, frequent and violent surges induce severe mechanical stress. Continuous expansion and contraction cause inevitable metal fatigue in the high-tensile steel wires. Over thousands of operational cycles, this fatigue weakens the wire matrix, steadily lowering the actual burst threshold until it fails under seemingly normal working conditions.
Mechanical stress from improper installation is arguably one of the leading causes of pressure-related failures in the field. Every product is engineered with a minimum bend radius, representing the tightest arc it can achieve without compromising structural integrity.
When routed too tightly through narrow machine bulkheads and bent beyond its limits, the geometry of the reinforcement layer is severely distorted. The wires on the outside of the bend stretch beyond their yield point, while the wires on the inside compress and kink. This distortion creates a highly vulnerable weak point. Specifically, twisting the line along its longitudinal axis during installation can reduce its burst capacity by up to 70 percent. Proper routing and utilizing appropriate angled fittings are empirical necessities.
Selecting the ideal Industrial Rubber Hose requires a systematic, objective approach. Relying on guesswork or simply replacing an old part with one that looks similar introduces significant liability and operational inefficiencies. Procurement managers universally rely on the STAMPED method to ensure every specification perfectly aligns with the machine's precise requirements.
The STAMPED acronym serves as an indispensable engineering checklist for evaluating operational parameters and matching them to the correct specifications.
Size: The physical dimensions dictate fluid velocity and overall efficiency. The inside diameter must be adequately sized to handle the required flow rate. If the diameter is too small, fluid velocity spikes, generating excessive friction, heat, and pressure drops. The outside diameter is equally vital when routing through tight protective sleeves.
Temperature: Decision-makers must evaluate two distinct thermal metrics: the ambient temperature of the job site and the maximum temperature of the media flowing inside. The selected product must be rated to handle the highest continuous heat expected without degrading.
Application: The operational context defines the environmental stresses. Will the assembly be subjected to constant flexing on a moving excavator boom, or will it remain static in an indoor manufacturing plant? Environmental hazards like ultraviolet light, ozone exposure, or severe physical abrasion dictate the specific type of outer cover material required.
Material: Chemical compatibility is strictly non-negotiable. The inner tube must be completely compatible with the specific fluid being used. Petroleum-based oils require different synthetic rubber compounds compared to aggressive synthetic fluids, phosphate esters, or water-glycol mixtures. Incompatible materials will cause the inner tube to swell, deteriorate, and rupture.
Pressure: The maximum working pressure must be equal to or greater than the maximum system output, accounting for anticipated dynamic surges. For medium-duty applications requiring tight routing and robust structural support, engineers frequently specify a Steel Wire Reinforced Hydraulic Hose, such as the SAE 100 R5, which features a unique textile-impregnated cover over a steel wire braid, making it highly reliable for air brake and general fluid power applications.
Ends: An assembly is only as strong as its weakest connection point. The fittings and couplings must precisely match the selected type and the machine's ports. Thread types, such as NPT, JIC, or ORFS, and sealing mechanisms must be identical to prevent dangerous leaks.
Delivery: This encompasses the volume and velocity of the transported fluid. Understanding the required flow rate ensures that the selected size and rating will support optimal performance without inducing pump cavitation or excessive turbulence.
Parameter | Key Considerations | Engineering Impact if Ignored |
|---|---|---|
Size | Inside Diameter, Outside Diameter. | Excessive fluid velocity, system overheating. |
Temperature | Ambient environment, Media limits. | Accelerated rubber degradation, premature leaks. |
Application | Static vs. dynamic movement, bend radius, abrasion. | Cover failure, wire reinforcement exposure. |
Material | Fluid compatibility. | Inner tube swelling, chemical breakdown. |
Pressure | System baseline, dynamic spikes. | Catastrophic burst failure, safety hazards. |
Ends | Fitting compatibility, thread type. | High-pressure fluid leaks, blown-off fittings. |
Delivery | Flow rate, fluid velocity requirements. | Pump cavitation, sluggish machinery response. |
Thoroughly understanding how these critical components are rated is absolutely vital for maintaining system safety and operational efficiency. From grasping the importance of the four-to-one safety factor to identifying how steel wire reinforcement dictates strength, every detail matters in the field. Over-specifying components wastes valuable procurement capital, while under-specifying inevitably leads to dangerous, costly failures.
By diligently applying the STAMPED method, you can confidently match the exact specifications to your machinery's unique demands. Do not leave your equipment's reliability to chance. If you need robust, rigorously tested components tailored to your specific operational needs, visit https://www.kaiyuerubber.com today to explore a complete catalog of industry-leading fluid power solutions.
Absolutely not. Burst pressure represents the definitive point of catastrophic material failure, where the reinforcement layers yield and the structure violently ruptures. Operating machinery anywhere near this threshold is a severe safety violation that can result in lethal fluid injection injuries and massive equipment damage. You should never operate a system above the manufacturer-specified maximum working pressure. The gap between the working limit and the burst limit exists solely as a mathematical safety margin to absorb unforeseen anomalies, not as a usable operational capacity.
Yes, under traditional SAE 100R standards, the rating is inversely proportional to the physical size. As the inside diameter increases, the internal surface area exposed to the pressurized fluid also increases, generating higher hoop stress on the reinforcement layers. Consequently, a larger diameter line will generally feature a lower maximum working capacity than a smaller diameter line of the exact same construction. However, modern ISO 18752 standards categorize products by constant ratings, meaning they are engineered to maintain the exact same capacity regardless of the inside diameter.
Occasional, minor spikes are safely absorbed by the industry-standard safety factor built into the design. However, if a machine experiences frequent, violent surges that consistently exceed the working limit, it will suffer from accelerated metal fatigue. In wire-reinforced models, the continuous expansion and contraction degrade the high-tensile wire matrix. This drastically shortens the operational lifespan of the assembly and significantly increases the risk of a sudden, unpredictable blowout.
From a strict safety standpoint, yes, it is technically safe because the robust construction will easily contain the low-pressure fluid. However, from an engineering and procurement perspective, it is highly inefficient and economically wasteful. High-pressure models require multiple layers of steel wire reinforcement, making them much heavier, stiffer, and significantly more expensive. They are difficult to route through tight spaces and possess larger minimum bend radii. It is always best practice to use a properly rated, lightweight textile-braided alternative for simple return or lube lines to maximize efficiency and reduce costs.
Rigorous preventative maintenance protocols dictate that visual inspections of all fluid power lines should be conducted at least once a month, or even more frequently in heavy-duty, continuous-operation environments. Maintenance personnel should meticulously look for clear signs of degradation, such as bulging or ballooning under load, weeping fluid around the crimped fittings, or unusual blisters on the outer cover. Any exposed, rusted, or frayed wire reinforcement strongly indicates that the structural integrity is compromised and it can no longer safely hold its rated capacity. Components exhibiting any of these symptoms must be replaced immediately.
Extreme temperatures significantly alter the physical properties of the elastomer compounds. When exposed to heat beyond its maximum rating, the rubber softens, losing its tensile strength and its ability to properly grip the reinforcement layers. This effectively lowers the safe operating capacity. Conversely, extreme cold makes the rubber stiff and brittle, increasing the likelihood of micro-cracks forming during pressure surges. Always ensure your selected product is rated for both the ambient environment and the fluid temperature.
Static pressure refers to a system where the fluid is pressurized but not moving, subjected to a constant, steady force without fluctuations. Dynamic pressure, which is far more common in heavy machinery, involves moving fluid characterized by rapid flow changes, valve actuations, and sudden load shifts. Dynamic systems experience constant pressure spikes and drops. The maximum working pressure assigned to a fluid line is designed to account for these dynamic, real-world fluctuations, ensuring the reinforcement can handle continuous cyclic fatigue.
