Views: 0 Author: Site Editor Publish Time: 2026-10-16 Origin: Site
I have seen it countless times on the factory floor. A sudden rupture halts the production line mid-shift. Hydraulic fluid pools rapidly around the machinery. Pressure alarms blare. Critical operations grind to an expensive halt. When investigating these catastrophic failures, engineers often look at pressure spikes first. Yet, more often than not, an overly tight bend radius is the hidden culprit.
Maximum pressure ratings and fluid compatibility dominate most technical discussions. However, proper routing geometry is an equally critical factor for system longevity. In this comprehensive engineering guide, we will break down the fundamental mechanics of spatial limits. You will learn the severe financial consequences of ignoring routing guidelines. We will also explore how different material constructions affect overall flexibility and share frontline installation strategies to maximize your equipment uptime.
Safety First: Exceeding the minimum bend limit causes premature material fatigue. This leads directly to structural kinking and dangerous high-pressure blowouts.
Flow Efficiency: Maintaining a proper curve ensures unrestricted fluid velocity. This prevents internal pressure drops and localized system overheating.
Material Matters: Internal construction drastically impacts flexibility. Rigid steel wire behaves very differently than pliable synthetic yarn.
Calculations are Crucial: Guesswork leads to failure. Accurately calculating the required length using standard industry formulas is essential for tight machinery spaces.
Static vs Dynamic: You must account for whether the line will remain stationary or move continuously. This fundamental difference completely changes the allowable bending limits.
Understanding this metric is the foundational step in proper fluid power design. In practical field terms, the bend radius is the absolute minimum radius at which a conduit can be curved without causing internal structural damage. It dictates how tightly you can bend the line before you compromise its pressure-holding capabilities or restrict fluid flow. Bending a line further than this specific limit places massive tension on the outer rubber cover. Simultaneously, it forces severe, damaging compression on the inner tube.
In the fluid power industry, we do not measure this metric from the outer edge of the casing. Instead, we calculate it from the inside edge of the curve to the exact center of the imaginary circle that the bend creates. Engineers call this the centerline measurement method. By determining the distance from the pivot point to the inner surface, technicians can standardize routing requirements regardless of the outer diameter.
To visualize this abstract concept, imagine wrapping a line around a solid cylindrical pillar. If a specific model has a minimum bend radius of 5 inches, you could safely wrap it around a pillar that possesses a 10-inch diameter. If you attempt to force that same assembly around a 6-inch diameter pillar, the radius squeezes down to 3 inches. This action immediately violates structural safety limits.
Every manufactured assembly comes with a highly specific minimum limit. Manufacturers establish these specifications through rigorous laboratory burst testing. You must strictly follow them to ensure operational safety.
Respecting these parameters is not merely a best-practice suggestion. It is a vital engineering requirement. Failing to adhere to these physical constraints will eventually disrupt your entire hydraulic circuit.
When you force an assembly into a tight corner, the physical dynamics of the elastomer change drastically. The outer rubber cover stretches far beyond its tensile limits. Meanwhile, the inner tube folds inward. Over time, this constant mechanical stress generates micro-tears in the rubber compounds. These tiny fissures propagate quickly. This leads to a complete rupture long before the expected lifespan concludes.
A restricted curve flattens the cylindrical shape. We commonly call this kinking. This physical deformation creates a bottleneck that chokes the smooth flow of hydraulic oil. The system immediately experiences sudden pressure drops downstream. Hydraulic pumps are then forced to overwork to compensate for the lost volume. This severely reduces overall pump efficiency and generates excess heat.
Heavy machinery operates under immense pressure. Sometimes this exceeds 5,000 PSI. If structural integrity is compromised due to over-bending, the risk of a high-pressure fluid leak increases exponentially. High-pressure fluid injection injuries are severe, life-threatening workplace hazards. They frequently result from compromised routing.
Frequent replacements and unexpected machine downtime drain operational budgets rapidly. By simply respecting spatial limits during the initial installation phase, maintenance facilities can drastically reduce emergency interventions. This proactive approach significantly lowers the total cost of ownership for heavy equipment.
Mechanics sometimes casually ignore installation guidelines to save space or reduce material length. When this happens, the entire system is immediately placed at risk. The physical consequences of restricted bending are severe and irreversible.
The most immediate danger of an undersized curve is structural kinking. When you cram an Industrial Rubber Hose into a cramped chassis, the outer wall collapses inward. Once this collapse occurs, the structural integrity is permanently destroyed. Even if a technician subsequently straightens it out, the internal wire braids have already suffered plastic deformation. This creates a permanent weak point destined to fail under pressure.
Fluid dynamics dictate that restricting the diameter of a conduit naturally increases the velocity of the fluid passing through it. When kinking occurs, the restricted flow causes increased hydrodynamic friction directly at the bend. This friction generates localized thermal energy. Because rubber is an excellent insulator, this heat cannot dissipate quickly. The internal elastomeric compounds literally bake, harden, and degrade from the inside out.
Analyzing recent shifts in the heavy machinery sector reveals a clear trajectory. Equipment is becoming increasingly compact. Original Equipment Manufacturers are designing smaller, more agile excavators, skid steers, and robotic arms. Consequently, the internal routing space shrinks drastically.
The demand for high-pressure fluid conveyance systems that can navigate these confined footprints has surged. Industry analysts note a rapid transition toward ISO 18752 standard specifications. These newer standards emphasize dynamic performance and high flexibility over traditional dimensional standards. This ongoing shift drives polymer scientists to develop advanced elastomeric blends that deliver tighter bending capabilities without sacrificing abrasion resistance or burst pressure. Mastering these routing metrics is no longer just an installation best practice. It is a strict prerequisite for modern machine design.
Guesswork has no place in fluid power design. To ensure an assembly will fit within a designated space without violating its physical limits, engineers rely on a standard industry formula. This calculation determines the exact length required to make a specific, safe turn.
The standard calculation formula is L equals A divided by 360, multiplied by 2 times Pi times R.
To use this equation correctly on the shop floor, you must understand each variable.
L represents Length: The minimum length required strictly to form the curve itself. This does not include the straight sections leading up to the metal fittings.
A represents Angle: The angle of the desired turn, measured in degrees like 90 or 180.
R represents Radius: The minimum bend radius provided by the manufacturer technical datasheet.
Pi: The mathematical constant, approximately 3.1416.
Let us walk through a real-world scenario. Imagine you are routing a line around a 90-degree corner inside a tractor engine bay. You check the specifications and find the chosen model has a minimum bend radius of 4 inches.
First, identify the variables. A is 90. R is 4. Pi is 3.1416. Plug them into the formula. Divide 90 by 360 to get 0.25. Next, calculate the circumference of the full circle by multiplying 2 times 3.1416 times 4, which equals 25.1328 inches. Finally, multiply the fraction 0.25 by the circumference 25.1328. The result is 6.28 inches.
Therefore, the technician needs exactly 6.28 inches of material strictly to navigate that 90-degree corner safely.
Not all fluid conveyance products handle tight spaces equally. Flexibility heavily depends on the internal reinforcement layer. As a field engineer, I always match the structural design to the specific spatial constraints of the machine.
Hose Standard / Type | Reinforcement Material | Flexibility Characteristics | Best Application Scenario |
|---|---|---|---|
SAE 100 R1 AT / EN 853 1SN | High-Tensile Steel Wire | Moderate. Rigid structure resists tight curves. | High-pressure primary hydraulic lines with standard routing space. |
SAE 100 R3 | Synthetic Textile Yarn | High. Easily navigates cramped chassis spaces. | Low to medium pressure pilot lines and return lines. |
SAE 100 R4 | Helical Steel Wire Insert | Low. Very stiff to prevent vacuum collapse. | Suction lines pulling fluid from the reservoir to the pump. |
High-tensile steel wire is the gold standard for high-pressure systems. A Flexible Steel Wire Braided Hydraulic Hose typically features one or two layers of braided carbon steel. While this robust construction provides exceptional burst resistance, it significantly increases the stiffness of the assembly. When bent, the individual metallic strands within the matrix must slide against one another. If the turn is too tight, these wires experience excessive friction. The wires on the outer curve are pulled in heavy tension. The wires on the inner curve face severe compression. Exceeding the specified limit causes these wires to fatigue, fray, and eventually snap.
For applications operating under lower pressures, a Textile Braided Hydraulic Hose offers a highly effective alternative. Instead of rigid steel, these models utilize synthetic yarns woven tightly around the inner core. Synthetic fibers stretch and compress much more easily than metal. This allows the assembly to achieve a significantly tighter minimum radius. These variants are absolutely ideal for pilot lines routed through highly restrictive articulating machinery joints.

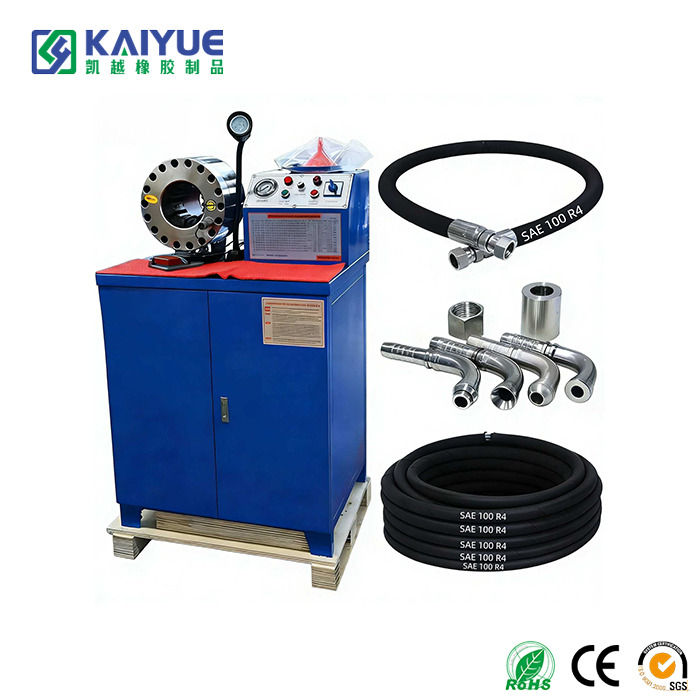

Suction lines operate under entirely different physical constraints. A Hydraulic Suction And Return Hose is designed to pull oil into the pump under negative pressure. To prevent inward collapse under vacuum conditions, manufacturers embed a rigid helical steel wire within the rubber carcass. This continuous metal coil makes the structure inherently stiff. Bending a suction line too tightly will permanently deform the helical coil and restrict fluid flow to the pump. Consequently, these variants require a much larger routing radius compared to standard pressure lines of the same internal diameter.
When designing a circuit, engineers must evaluate whether the assembly will remain stationary or move during operation. The operational environment dictates which standard must be applied to ensure system longevity.
Static routing refers to an installation where the line does not move, flex, or vibrate significantly while the machinery operates. Because the materials are not subjected to continuous mechanical fatigue, technicians can generally route the line closer to its absolute minimum limit. However, as an empirical best practice, always leave a safety margin of 10 to 20 percent above the minimum limit to account for minor pressure surges and thermal expansion.
Dynamic routing involves lines that flex or move continuously during the machine cycle. Common examples include attachments on excavator arms and automated manufacturing robotics. Dynamic applications subject the materials to continuous cyclical stress. If a line is bent to its minimum static limit and then forced to flex repeatedly, the reinforcement layers will degrade rapidly due to internal friction. A common engineering rule of thumb is to increase the minimum static limit by at least 20 to 30 percent when calculating for dynamic movement.
Proper installation is just as critical as selecting the correct materials. Even the highest quality product will fail prematurely if routed poorly. Implementing these empirical best practices ensures optimal fluid dynamics.
One of the most common installation errors is forcing a line into a sharp turn immediately behind the metal coupling. This places immense, concentrated stress on the fitting transition area. To mitigate this, mechanics should always utilize angled fittings like 45-degree or 90-degree elbows. These components redirect the fluid path mechanically. This allows the flexible rubber to maintain a straight trajectory as it exits the coupling.
Applying torque during installation is a rookie mistake that destroys assemblies. Twisting an assembly by even a few degrees can reduce its pressure-holding capacity and allowable radius by up to 70 percent. When a twisted line is pressurized, the internal reinforcement layers violently attempt to straighten out. This action literally shears the rubber layers apart. Always use a two-wrench method during installation. Use one wrench to hold the fitting stationary, and the other to tighten the connecting nut.
Fluid power systems are subject to the Poisson effect. This is a physical phenomenon where internal pressurization causes dimensional changes. Under maximum operating pressure, a line can expand in diameter and shrink in length by up to 4 percent. If installed tightly between two points with zero slack, this pressurized shrinkage will pull violently on the fittings. Always incorporate adequate slack or a slight U-shape in your routing design.
The bend radius is far more than a simple installation guideline. It is a fundamental safety and performance metric that dictates the reliability of your entire hydraulic circuit. Accurately calculating spatial requirements prevents dangerous blowouts, maintains optimal fluid velocity, and drastically reduces your long-term maintenance costs.
Always take the time to evaluate your specific material construction. Recognize how rigid steel wire behaves differently than flexible textiles in cramped spaces. By applying proper routing techniques in the field, you will maximize your equipment lifespan and eliminate costly downtime.
When spatial constraints are tight, do not leave safety to chance. For reliable fluid conveyance solutions engineered to meet strict international standards, explore the comprehensive catalog at Kaiyue Rubber. Select the precise assembly that matches your specific dynamic or static routing requirements without ever compromising on pressure ratings.
The minimum limit varies wildly depending on the internal diameter, maximum pressure rating, and specific construction materials. A 1/4-inch line will navigate a much tighter corner than a bulky 1-inch line. Always refer to the specific manufacturer technical datasheet or standardized SAE and EN specifications for exact figures.
Generally, no. A textile braided variant is inherently more flexible and possesses a tighter allowable radius than its steel wire counterpart. The high-tensile metal reinforcement required for high-pressure containment makes steel-braided models significantly stiffer.
Absolutely not. Heating the rubber to force a tighter curve is a highly dangerous practice. Excessive heat degrades the vulcanized rubber compounds and permanently weakens the internal reinforcement layers. This leads to rapid structural failure under pressure.
A suction and return line contains a rigid helical steel wire embedded in the rubber carcass. This prevents the walls from collapsing under vacuum pressure. This continuous metal coil makes the structure much stiffer than standard return lines. It typically requires a significantly larger routing radius to prevent permanent deformation.
Visual and physical indicators include the flattening or ovaling of the profile at the apex of the curve. You might also notice localized bulging or micro-cracks on the outer cover. If the assembly looks physically stressed, feels unnaturally rigid, or is kinking inward, the radius is too small and must be corrected immediately.
To measure an existing installation, measure the distance from the inside edge of the curve to the imaginary center point of the circle that the bend creates. You can easily do this by tracing the inside curve onto a piece of cardboard, completing the circle with a compass, and measuring the resulting radius.
Yes, indirectly. While the static minimum bend radius is a fixed physical property, operating at maximum peak pressures causes the hose to stiffen and attempt to straighten out due to internal forces. In high-pressure dynamic applications, engineers always increase the minimum allowable bend radius to prevent excessive stress on the reinforcement layers.
