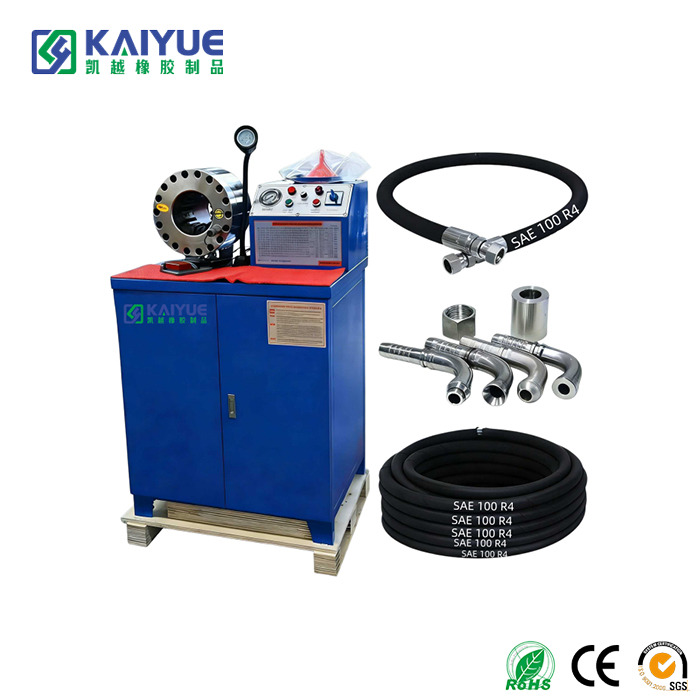

Picture a bustling factory floor suddenly brought to a grinding halt by a deafening pop. A hazardous mist of hydraulic fluid sprays across the machinery. This relatable yet highly dangerous scenario highlights the hidden risks and exorbitant costs of sudden equipment failure caused by a ruptured fluid conveyance line. Whether you operate heavy earth-moving machinery or manage a continuous manufacturing assembly line, the structural integrity of your fluid transfer components dictates the safety and efficiency of your entire operation.
These vital conduits endure incredibly demanding conditions daily. They constantly battle extreme temperature fluctuations, immense internal pressure surges, and relentless external friction. Proactive maintenance always proves significantly cheaper and safer than reactive emergency repairs. This comprehensive guide helps you identify early warning signs of degradation, establish a reliable maintenance schedule, and execute safe replacement procedures to keep your systems running flawlessly.
Visual Inspections are Crucial: Regularly checking for surface cracks, localized bulges, and fluid leaks prevents catastrophic system failures and eliminates costly unplanned downtime.
Know Your Specifications: Maintenance and replacement timelines vary significantly depending on the specific structural design and operating environment of your fluid lines.
Safety First: Always depressurize systems, utilize Lockout Tagout procedures, and follow strict safety protocols before attempting any mechanical replacement.
Proactive Maintenance Extends Lifespan: Ensuring proper routing, maintaining cleanliness, and avoiding extreme twisting during installation effectively doubles the functional life of your components.
Timely Replacement is Non-Negotiable: A damaged high-pressure line cannot be permanently patched. Complete replacement remains the only safe and structurally sound solution.
Equipment reliability dictates profitability on any industrial floor. A single blown line immediately halts production, stalls construction projects, or paralyzes automated assembly systems. Unplanned downtime costs operations thousands of dollars per minute in lost revenue and idle labor. Replacing a compromised component before it fails functions as a minor maintenance expense. This proactive step prevents massive financial losses associated with unexpected operational paralysis.
Operating machinery with degraded lines presents severe physical dangers to personnel. High-pressure fluid injections occur when a microscopic pinhole leak forcefully injects toxic fluid under a worker's skin. This creates a severe medical emergency requiring immediate surgical intervention. Furthermore, sudden ruptures cause high-temperature chemical spills or massive oil leaks. These incidents endanger workers and lead to severe environmental contamination, triggering regulatory fines and requiring expensive hazardous material cleanup.
A failing fluid line does more than just leak. It actively destroys the machinery it serves. As the internal tube degrades, microscopic particles of synthetic polymer and reinforcing wire break off and enter the fluid stream. These abrasive contaminants travel directly into expensive pumps, sensitive control valves, and cylinders. The resulting internal scoring leads to catastrophic mechanical failure. Timely replacement ensures internal integrity and protects your broader mechanical ecosystem.
Manufacturers design the outer jacket specifically to shield internal reinforcement layers from harsh environments. Maintenance teams must regularly inspect for deep abrasions, cuts, and exposed wire braids. While a Smooth Surface Rubber Hose makes it easier to spot superficial surface-level cracking early on, any damage penetrating beyond the outer cover requires immediate replacement to prevent a blowout.
Continuous exposure to high operating temperatures, ultraviolet light, and ozone causes chemical compounds to lose their plasticizers over time. This degradation transforms a flexible tube into a rigid and brittle pipe. If the material feels unusually stiff, cracks when flexed, or makes a crunching sound when moved, it has lost its elasticity. Such components are highly prone to snapping under sudden pressure spikes.
A localized bulge or blister on the outer cover serves as one of the most critical warning signs imaginable. This physical deformity indicates that the inner tube has failed, allowing high-pressure fluid to seep into the reinforcement layer and push against the outer cover. This is a massive red flag, especially for a high-pressure Hydraulic Rubber Hose. The bulge represents a weak point actively on the verge of a catastrophic burst.
Moisture, active dripping, or a greasy film accumulating near the crimped metal ends suggests mechanical connection failure. Weeping fittings often indicate internal degradation, a crimp loosened by severe machine vibration, or the initial use of an incorrect fitting. The fitting acts as the most highly stressed point of the assembly. Consequently, any sign of leakage here warrants an immediate halt to operations.
Physical trauma permanently damages the internal reinforcement structure. Common causes include being run over by a forklift or crushed by heavy machinery. A kink restricts the normal flow of fluid and creates localized pressure spikes directly behind the restriction. This drastically reduces structural integrity and makes the affected area highly susceptible to bursting even under standard operating pressures.
Engineers must clarify the difference between storage longevity and active use duration. Shelf life refers to the maximum time an unused product can remain in a climate-controlled warehouse before natural degradation occurs. This typically ranges from three to five years under optimal conditions. Conversely, service life defines the operational duration once installed. A product with a long shelf life may still experience a drastically shortened service life if subjected to extreme operational stresses.
Industry professionals utilize the STAMPED framework to evaluate factors that accelerate aging and dictate replacement schedules. Size mismatches alter fluid velocity and heat generation. Exceeding Temperature limits literally bakes the synthetic polymers. Dynamic Application flexing wears materials faster than static installations. Material incompatibility causes internal swelling. Frequent Pressure spikes fatigue the reinforcement layers. Improper Ends lead to premature connection failure, and high Delivery velocity causes internal erosion.
The fluid power industry is currently undergoing a massive transformation. We are seeing a distinct shift away from reactive run-to-failure models toward predictive maintenance analytics. Driven by the integration of Industrial Internet of Things technologies, modern heavy machinery increasingly utilizes smart sensors. These devices monitor real-time pressure surges, thermal spikes, and vibration frequencies. By analyzing this data, maintenance managers can accurately predict exactly when a fluid line is likely to fail. This allows teams to schedule replacements during planned downtime rather than waiting for an emergency.
In addition, stringent environmental regulations regarding fluid spills are pushing manufacturers to innovate. We are witnessing the development of advanced polymer blends and highly engineered thermoplastic covers. These new materials offer unprecedented resistance to abrasion, ozone depletion, and chemical degradation. This technological evolution extends the baseline service life of fluid conveyance systems while significantly reducing the ecological footprint of heavy industrial operations.
Proactive maintenance begins with standardized and disciplined observation. Operators should implement a structured checklist to spot wear early. Daily checks must look for active puddles, weeping fittings, and obvious physical damage before machine startup. Weekly inspections should trace the entire length of the line for abrasions, kinks, and cover blisters. Monthly tactile inspections performed while the machine is powered off and cool help identify hardening or localized soft spots indicating internal decay.
Improper installation ranks as a leading cause of premature failure. Ensure the assembly utilizes proper angled adapters like 45-degree or 90-degree fittings to relieve stress on the crimped ends. Never exceed the manufacturer minimum bend radius. Forcing a tight bend stretches the outer cover and compresses the inner tube, leading to rapid rupture. Use protective sleeves or clamps to prevent rubbing against sharp machine edges or vibrating components.
Industrial environments are filled with corrosive chemicals, solvents, and abrasive dust. Regularly wiping down an Industrial Rubber Hose with a clean rag helps operators spot early signs of leaks hidden by thick grime. Removing oil and chemical buildup prevents these harsh substances from slowly eating away at the synthetic outer cover. This simple housekeeping task preserves the structural integrity of the internal reinforcement layers.
Machinery requires regular calibration to ensure operation within specified component limits. If a system receives an upgrade to deliver higher pressure or flow rates, engineers must rigorously re-evaluate the existing lines. Consistently operating at maximum rated temperature and maximum rated pressure simultaneously exponentially decreases service life. Installing pressure relief valves and temperature gauges keeps operations well within safe margins.
Safety must always dictate the pace of maintenance operations. Before initiating any replacement, technicians must completely shut down and secure the entire system using standard Lockout Tagout procedures. Complete depressurization of the system is equally critical. Actuate the machine control valves to relieve stored energy, paying special attention to accumulators or suspended loads. Attempting to loosen a fitting on a pressurized line results in violent whipping and high-velocity fluid discharge.
Once the system enters a verified zero-energy state, proceed with removal. Utilize the two-wrench method. Use a backup wrench to hold the stationary fitting and a primary wrench to turn the swivel nut. This prevents the transmission of damaging torque to internal manifolds. Place appropriately sized drip pans beneath the connection points to capture residual fluids. Immediately cap or plug the open ports on the machinery to prevent airborne dust from contaminating sensitive internal circuitry.
Preparation involves verifying that the new component acts as an exact match for the operational requirements. Measure the overall length and specific fitting orientations of the removed part. Ensure the internal diameter matches perfectly. A smaller diameter restricts fluid flow and causes system overheating. A larger diameter leads to sluggish response times. Flush the new internal tube with compressed air or a cleaning projectile to ensure no manufacturing dust enters your clean system.
Begin by hand-threading the fittings to ensure proper alignment and eliminate the risk of cross-threading. Once hand-tightened, use a calibrated torque wrench to secure the connections according to exact specifications. During routing, observe the printed layline running along the length. If this line spirals after installation, the assembly is twisted. Torsion reduces a high-pressure line lifespan by up to ninety percent because the internal reinforcement wires are forced to bear uneven loads.
Never return a machine to full operational capacity without conducting a progressive testing phase. Slowly restore power and gradually increase the pressure to bleed trapped air from the lines. This prevents destructive cavitation. While running at low pressure, visually inspect the newly installed connections for weeping. If they remain dry, gradually increase to maximum standard operating pressure. Monitor for abnormal expansion, vibration, or leakage before clearing the equipment for production.
Selecting the correct replacement requires a strict balance of fluid compatibility, environmental conditions, and pressure demands. For heavy-duty machinery like excavators and industrial presses, a Steel Wire Braided Hydraulic Hose is the go-to choice. Specifically, models meeting SAE 100 R1 AT standards feature an oil-resistant synthetic rubber inner tube and a high-tensile single steel wire braided reinforcement. This robust architecture prevents bursting under immense internal fluid pressure.
Conversely, specialized return lines where fluid is drawn back to a reservoir demand a completely different architecture. In these scenarios, a Hydraulic Suction And Return Hose compliant with SAE 100 R4 specifications is required. These utilize a high-tensile textile cord interwoven with a rigid steel wire helix. This unique design resists vacuum forces, preventing the walls from collapsing inward and starving the pump.
Feature | High-Pressure Delivery Line | Suction & Return Line |
|---|---|---|
Industry Standard | SAE 100 R1 AT / EN 853 1SN | SAE 100 R4 |
Reinforcement Structure | High-Tensile Steel Wire Braid | Textile Cord with Steel Wire Helix |
Primary Application | Pushing fluid from pump to actuators | Drawing fluid back to the reservoir |
Pressure Handling | High Positive Pressure | Vacuum & Low Positive Pressure |
A premium fluid line is rendered entirely ineffective if paired with substandard or incompatible fittings. The fitting remains the most vulnerable point in any fluid conveyance system. Mixing a high-pressure line with a mismatched crimp specification alters the compression dynamics. This significantly increases the probability of a high-velocity blowout. Always ensure thread types precisely match the machine mating components to guarantee a secure and leak-free seal.
In high-pressure systems, there is no such thing as a minor leak. A slow drip or light weeping around a fitting acts as a definitive indicator of internal structural failure. Fluid escaping under high pressure easily atomizes, creating a severe fire hazard if exposed to an ignition source. Operators must be trained to immediately shut down machinery at the very first sign of moisture on an assembly.
A pervasive and dangerous practice in industrial maintenance involves combining components from one manufacturer with fittings from another. While parts may appear visually similar, the microscopic tolerances and compression ratios vary significantly between brands. Applying a generic fitting to a specialized line compromises the mechanical bond. This makes the connection highly susceptible to sudden separation during thermal expansion or pressure spikes.
Attempting to repair a damaged high-pressure line with duct tape, epoxy, or standard worm-gear clamps demonstrates a fundamental misunderstanding of fluid dynamics. The outward force exerted by heavy industrial systems vastly exceeds the structural retention capabilities of surface-level patches. When the patch inevitably fails, the resulting blowout is often more violent due to concentrated pressure buildup. Full and immediate replacement is the only scientifically sound solution.
Understanding and identifying early warning signs forms the cornerstone of effective equipment management. Sticking to a strict proactive maintenance schedule and utilizing proper routing techniques drastically reduces the likelihood of catastrophic blowouts. Furthermore, following safe step-by-step replacement procedures ensures that when a component reaches the end of its service life, technicians can swap it out without endangering personnel or introducing damaging contaminants into the broader system.
Investing time and resources into maintaining your fluid conveyance systems pays massive dividends in overall workplace safety, operational efficiency, and long-term machinery longevity. Do not wait for a costly emergency to take action. Conduct a thorough visual inspection of your equipment today. Browse the specialized manufacturing catalog at Kaiyue Rubber to source the exact, high-quality replacement products required to keep your industrial operations running at peak performance.
The replacement frequency depends entirely on the operational environment, temperature extremes, and pressure cycles. Empirical data and most preventative maintenance schedules recommend replacing high-use hydraulic lines every one to two years. Regardless of age, they must be replaced immediately if routine visual inspections reveal any signs of external wear, cracking, localized bulging, or weeping around the crimped fittings. Relying on visual condition rather than a strict calendar date is the safest approach.
No. For industrial and hydraulic applications, patching a damaged line with tape, sealants, or temporary external clamps is highly dangerous and violates basic safety standards. Once the structural integrity of the inner tube or the reinforcement layer is compromised, the unit can no longer safely contain pressurized fluids. Full replacement of the entire assembly is the only mechanically sound and safe option to restore system integrity.
Rapid degradation is primarily caused by operating the equipment outside the engineered specifications. Common accelerators include excessive ambient or fluid temperatures, severe pressure spikes beyond the maximum working pressure, prolonged exposure to ultraviolet light, and abrasive physical rubbing against moving machinery. Utilizing fluids chemically incompatible with the specific synthetic compound of the inner tube will also cause rapid internal erosion and premature failure.
Warning signs for wire-braided configurations are specific and require careful observation. Look for any areas where the outer cover has worn away, exposing frayed or rusted steel reinforcement wires. Other critical indicators include weeping fluid around the metal crimped fittings, localized bulges along the length indicating a ruptured inner tube, or a noticeable unnatural stiffening of the body caused by severe heat degradation.
A standard pressure line is engineered specifically to withstand intense outward force generated by high-pressure fluid being pushed from the pump to the actuators. In contrast, a suction and return line is designed to manage fluid returning to the reservoir. These lines are structurally reinforced, typically with a rigid helical wire insert, to prevent the walls from collapsing inward under the vacuum conditions created by the pump drawing fluid.
Temperature tolerances depend heavily on the synthetic rubber compounds used during manufacturing. Standard hydraulic lines typically operate safely between -40 degrees Fahrenheit and 212 degrees Fahrenheit. However, specialized high-temperature variants utilizing advanced elastomers can withstand continuous operating temperatures up to 300 degrees Fahrenheit. Always consult the manufacturer specifications, as exceeding the rated temperature will rapidly bake the rubber and cause premature brittle failure.
Accurate measurement requires determining three critical dimensions: the inner diameter, the outer diameter, and the overall assembly length. The inner diameter is the most crucial metric, often denoted by dash sizes, as it dictates fluid flow velocity. To measure overall length accurately, lay the assembly flat and measure from the end of one fitting to the end of the other. For angled fittings, measure from the center of the sealing surface to ensure exact routing alignment.
