A rubber hose acts as the primary flexible conduit for transferring fluids, gases, and abrasive materials across heavy industrial, commercial, and mobile equipment. Fluid power systems rely entirely on the structural integrity of these connections to function safely and efficiently. Improper hose specification carries massive operational risks. Selecting the wrong component leads to premature wear, dangerous fluid leaks, catastrophic system failures, and unplanned downtime. This guide shifts from basic definitions to a strict technical evaluation framework. You will learn how to match specific constructions, pressure ratings, and material compounds to precise application requirements. We will cover the exact specifications needed to ensure maximum safety and performance in the field, eliminating the guesswork from fluid routing and system design.
Application Dictates Construction: The core use case—whether high-pressure hydraulics, abrasive particulate matter handling, or potable water transfer—determines the required inner tube compound, reinforcement type, and outer cover durability.
Pressure Ratings are Non-Negotiable: Selecting between low, medium, and high-pressure hoses requires strict adherence to SAE and EN standards to ensure system safety and longevity.
Environmental Factors Drive Lifespan: The outer cover of a rubber hose must act as a protective shield, specified based on external threats including UV exposure, ozone, chemical splash, and physical abrasion.
Standardized Evaluation is Required: Utilizing the STAMPED framework (Size, Temperature, Application, Material, Pressure, Ends, Delivery) is essential for accurate, risk-free procurement.
The inner tube is the only part of the assembly that makes direct contact with the conveyed fluid. It serves as the primary containment barrier and must maintain absolute chemical compatibility with the media. If you run petroleum-based hydraulic oil through a standard natural rubber tube, the material will swell, degrade, and push rubber contaminants directly into expensive valves and pumps. Engineers specify synthetic compounds like Nitrile (NBR) for most hydraulic applications because it actively resists oil breakdown. For steam or hot water routing, we switch to EPDM compounds. Aggressive chemicals require highly resistant synthetic liners like PTFE to prevent structural breakdown. The inner tube must remain perfectly smooth. Any internal ridges or manufacturing defects create fluid turbulence, which generates excess heat and reduces overall system efficiency.
The reinforcement layer dictates the pressure capacity of the entire assembly. A bare rubber tube will burst at very low pressures, so manufacturers wrap it in a structural reinforcement layer. For low-pressure return lines, a simple textile braid provides adequate strength. When applications step up to medium and high-pressure hydraulics, you need high-tensile steel wire. Manufacturers apply this wire in either a braided or spiraled pattern. Braided wire crosses over itself, offering excellent flexibility for tight routing on skid steers or agricultural tractors. Spiraled wire lays parallel in alternating layers. We use spiral reinforcement for extreme pressure applications, such as large excavators and industrial presses, because it handles severe pressure impulses without the wire strands rubbing together and fatiguing.
Reinforcement Type | Primary Application | Flexibility | Pressure Capacity |
|---|---|---|---|
Textile Braid | Return lines, pneumatics, low-pressure fluids | Excellent | Low |
Single Wire Braid | Medium-pressure hydraulics, fleet vehicles | High | Medium |
Double Wire Braid | High-pressure machinery, construction equipment | Moderate | High |
Multi-Wire Spiral | Extreme pressure impulses, heavy excavators | Low | Extreme |
The outer cover does not hold internal pressure. Its sole purpose is to protect the internal wire reinforcement from external destruction. If the cover fails, the steel wire rusts, and the assembly eventually blows out. Equipment constantly rubs against concrete, steel chassis, and other moving parts. We use thick, abrasion-resistant synthetic rubber to fight this friction. In underground mining operations, the cover must meet strict MSHA flame resistance standards to prevent fire propagation. If you have lines exposed to constant sunlight on agricultural equipment, you need a cover compound that resists UV and ozone degradation. Without proper UV resistance, the rubber will dry out, become brittle, and crack within a single season.
You cannot simply glue these three layers together. The components must bond permanently during a process called vulcanization. Manufacturers first extrude the inner tube over a flexible rubber or nylon mandrel to ensure precise internal dimensions and prevent collapse. Next, massive braiding or spiraling machines wrap the textile or steel wire tightly over the inner tube. Finally, the outer cover is extruded over the reinforcement layer. The entire assembly then goes into an autoclave. Intense heat and pressure force the rubber molecules to chemically cross-link. This vulcanization process transforms the separate layers into a unified, highly durable, pressure-resistant conduit. After curing, technicians use high-pressure water to blow the flexible mandrel out of the finished assembly.

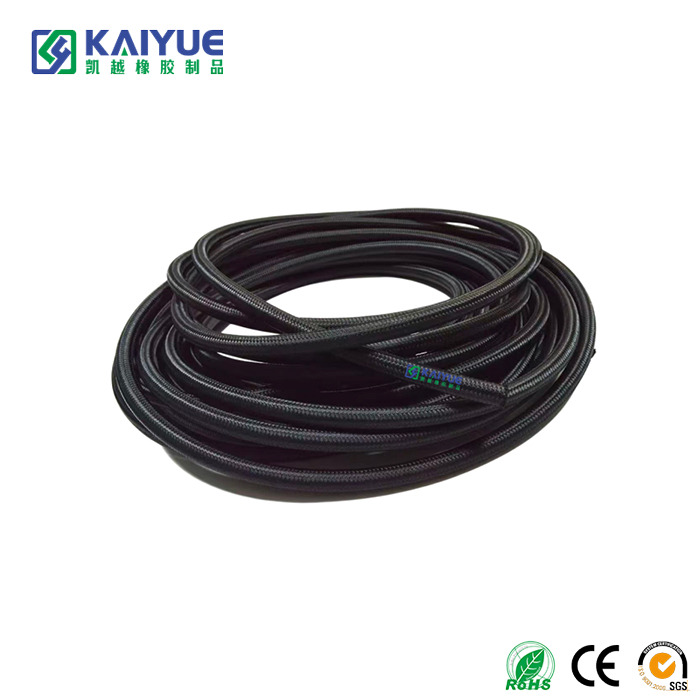

Heavy machinery, construction equipment, and industrial presses rely heavily on robust fluid routing to transmit power. High-pressure hydraulic lines demand strict structural integrity. Excavators, wheel loaders, and hydrostatic drives generate massive pressure spikes during normal operation. An SAE 100 R1 AT EN853 1SN hydraulic hose provides excellent reliability in these demanding environments. Its single wire braid construction handles medium-to-high pressure hydraulic lines perfectly. It easily accommodates petroleum or water-based fluids under intense operational stress. These specific assemblies maintain the necessary flexibility for moving boom arms while preventing catastrophic burst failures during heavy lifting cycles.
Commercial vehicles and fleet maintenance systems require flexible, durable fluid routing that can withstand constant vibration and heat. Air brakes, power steering systems, and heavy-duty lubrication lines operate under moderate stress but require absolute reliability. We frequently specify an SAE 100 R5 medium-pressure hydraulic hose for these specific tasks. It features a unique textile cover and a single wire braid reinforcement. This construction makes it ideal for DOT air brakes and turbocharger oil lines. The textile cover provides excellent heat resistance in cramped, high-temperature engine compartments while maintaining the flexibility needed for vehicle articulation and tight chassis routing.
Many industrial systems prioritize flexibility and ease of routing over extreme burst strength. Hydraulic return lines, antifreeze transfer systems, and low-pressure pneumatics fall into this category. These applications do not experience severe pressure spikes or heavy impulses. An SAE 100 R3 low-pressure hydraulic hose excels in these environments. Its double textile braid reinforcement suits low-pressure hydraulic systems perfectly. It handles general-purpose fluid delivery, lubricating oils, and pneumatic routing with ease. The complete lack of steel wire makes it highly flexible, lightweight, and easy for technicians to route through tight machinery spaces without fighting stiff reinforcement layers.
Transporting highly abrasive dry materials requires specialized wear resistance that standard fluid lines cannot provide. Sand, gravel, dry cement, and metal shavings will quickly destroy a standard synthetic inner tube. Facilities use thick, natural rubber-lined assemblies to transport these particulates safely. Natural rubber offers superior elasticity and bounce. This allows sharp, abrasive particles to deflect off the inner wall rather than cutting into the material. Construction crews use these heavy-duty lines for sandblasting, concrete pumping, and seamless conveyor integration. The thick outer covers protect against the harsh external environments, dragging, and crushing forces typical of construction sites and quarries.
Potable water and aggressive chemicals demand strict certification and highly specialized compounds. Assemblies used for human consumption require explicit FDA or NSF certifications. Potable water certification prevents exposure to toxic leaching compounds and manufacturing residues. You must use certified lines anytime water touches skin or eyes, such as in emergency safety showers or mobile drinking water tanks. Chemical routing requires entirely different synthetic compounds like cross-linked polyethylene (XLPE) or ultra-high-molecular-weight polyethylene (UHMWPE). These specialized liners prevent aggressive acids, harsh solvents, and caustic chemicals from melting the conduit from the inside out.
In certain applications, the assembly acts as a pressure-sensitive trigger rather than a continuous fluid conduit. Traffic counting tubes detect vehicle weight as tires compress the line, sending a sharp pneumatic signal to a roadside counter. The classic gas station bell hose alerts attendants to arriving customers using the exact same principle. These niche uses rely on immediate pneumatic response and high crush resistance. The rubber compound must rebound instantly to its original round shape after compression to register the next signal accurately without permanent deformation.
Proper specification requires a standardized, methodical approach. The STAMPED method eliminates guesswork and ensures safe operation across all fluid power systems. Every variable must align perfectly with the specific application demands to prevent premature failure.
STAMPED Element | Technical Definition & Field Importance |
|---|---|
Size | Inner diameter (ID) determines flow rate and fluid velocity. Undersized lines cause heat buildup. Outer diameter (OD) dictates routing constraints and clamp sizing. |
Temperature | You must account for both the internal media temperature and the ambient external temperature. Excessive heat bakes the rubber, causing brittle cracking. |
Application | Dynamic flexing requires different bend radii than static installations. You must evaluate environmental hazards like UV exposure, ozone, or heavy abrasion. |
Material | Strict chemical compatibility with the conveyed media (liquids, gases, or solid particulates) prevents internal breakdown and system contamination. |
Pressure | Maximum working pressure must exceed the highest system pressure, fully accounting for sudden dynamic spikes and hydraulic surges. |
Ends | Coupling compatibility, thread types, and exact crimping specifications ensure leak-free connections under heavy operational stress. |
Delivery | Volume and velocity requirements dictate the specific packaging, pressure testing, and certification needs before final installation. |
You must map specific outer cover materials directly to their protective outcomes. Neoprene (CR) resists oil, weathering, and flame, making it ideal for offshore drilling or heavy industrial use. Nitrile handles petroleum products exceptionally well, preventing the cover from swelling when exposed to external hydraulic fluid leaks. EPDM provides extreme ozone and weather resistance, perfect for outdoor agricultural or construction equipment exposed to the elements year-round. UHMWPE covers offer extreme abrasion resistance for lines dragging on concrete. Selecting the wrong cover material guarantees premature failure, regardless of how strong the internal wire reinforcement is.
Standardizing inventory across a facility or fleet reduces overhead and simplifies maintenance protocols significantly. When engineers consolidate specifications to a few versatile SAE ratings, technicians replace lines faster and with greater confidence. This reduces overall equipment downtime. Standardization prevents dangerous installation errors, as maintenance crews become highly familiar with the specific crimping diameters, fitting types, and routing requirements of the selected inventory. A streamlined inventory also ensures you always have the correct replacement parts on hand during an emergency breakdown.
Assemblies fail prematurely for specific, highly preventable reasons. Exceeding the minimum bend radius kinks the line, restricting fluid flow and severely stressing the wire reinforcement on the outside of the bend. Improper routing causes torsional stress. Twisting a line even a few degrees during installation severely compromises its pressure capacity and guarantees a blowout. External abrasion wears through the outer cover rapidly. Once the cover breaches, the steel reinforcement layer rusts, leading to eventual rupture. High ambient heat bakes the rubber, causing it to become brittle and crack under normal flexing.
Proper installation extends component lifespan drastically and protects your equipment investment. Follow these strict guidelines during any replacement or new build.
Use two wrenches during installation to prevent twisting the line as you tighten the final fitting.
Install protective nylon or steel sleeves over lines located in high-abrasion zones or near moving pivot points.
Utilize proper clamping techniques to secure lines away from moving belts, pulleys, and hot exhaust manifolds.
Avoid taut installations. Always allow slight slack for pressure-induced length changes, as pressurized lines can shrink up to four percent in length.
Route lines to flex in a single plane to eliminate dangerous twisting forces during machine articulation.
Establish a realistic, evidence-based schedule for visual inspections. Do not wait for a catastrophic leak to occur before checking your equipment. Look for cover blisters, which indicate inner tube failure and high-pressure fluid leaking into the reinforcement layer. Inspect all connection points for weeping fittings or moisture accumulation. Check the entire length of the assembly for any exposed wire reinforcement. Feel the cover for abnormal stiffness, which indicates severe heat damage. Proactive replacement prevents catastrophic bursts, expensive system contamination, and severe safety hazards for your operators.
Treating fluid conduits as generic commodities invites system failure and safety hazards. You must filter your options by operating pressure, media compatibility, and environmental durability to ensure safe power transmission and fluid delivery.
Audit your current fluid transfer systems for visible wear, focusing specifically on high-flex and high-abrasion zones.
Consult with a certified hydraulic specialist to resolve complex routing challenges or frequent failure points.
Request detailed specification sheets and material safety data before finalizing any procurement.
Implement protective sleeving on all lines exposed to heavy friction or extreme heat.
Standardize your inventory to specific SAE ratings to streamline future maintenance and reduce crimping errors.
A: Natural rubber provides excellent elasticity and extreme abrasion resistance, making it the standard for transporting dry materials, sand, and gravel. Synthetic rubbers, including Nitrile and Neoprene, are chemically engineered to resist oil, aggressive solvents, and high temperatures. You must use synthetic compounds for hydraulic fluids and industrial chemicals to prevent the inner tube from swelling and degrading.
A: No. You can only use assemblies explicitly certified by organizations like NSF or FDA for potable water. Standard industrial lines contain manufacturing residues and toxic leaching compounds that will contaminate the water supply. Certified lines utilize specialized food-grade inner tubes to ensure the water remains safe for human consumption and skin contact.
A: This designation indicates the assembly meets specific SAE and EN international manufacturing standards. It features a single high-tensile steel wire braid reinforcement. This specific construction provides the necessary strength and flexibility for medium-to-high pressure hydraulic systems using petroleum or water-based fluids in heavy machinery.
A: The maximum working pressure of the assembly must equal or exceed the maximum system pressure of your equipment. You must also account for dynamic pressure spikes and surges that occur during sudden valve closures or heavy load shifts. Never install a component rated lower than your system's highest potential pressure spike.
A: Outer covers degrade due to environmental and mechanical factors. Prolonged exposure to UV rays and ozone dries out the compound, causing surface cracks. Incompatible chemical splashes and extreme ambient heat accelerate material breakdown. Physical friction from dragging lines across concrete or vibrating against machine chassis physically wears away the protective layer.
A: Replacement intervals depend entirely on application severity, operating environment, and duty cycles. You should rely on strict visual inspections rather than a set calendar date. Replace the assembly immediately if you find deep cover cracks, active fluid leaks, abnormal stiffness, localized blistering, or any exposed wire reinforcement.
